MicroCAD Productivity Toolkit for Revit
MicroCAD Productivity Toolkit for Revit is a series of add-in utilities for Autodesk Revit. The tools extend the capabilities of Revit in key areas. They are easy to use and make working in Revit easier.
Revit Toolkit includes nine sets of tools:
BIM Manager Tool
BIM
The BIM set of tolos helps with management of a project. Multi Type Editor displays a tree of elements in a project, which can be edited and changed at the same time.
Import & Export
Choose the families to import into the project from a specified location with Import tool. Importing from multiple folders is supported within one common location.
BIM Query
This tool enables the user to quickly edit Type and Instance properties for selected Categories. The user can edit properties with a built-in spreadsheet editor or save and open in Excel.
Analysis Tool
Analyze
This tool set can analyze selected geometry and store calculated values in a shared parameter. Tools include dimensions (Thickness, Insertion, Length), door swing analysis, and room lighting calculations.
Path Manager
Path Manager opens a dialogue, where you can manage templates for creating and analyzing paths in the project. By specifying the rooms, tool calculates the shortest distance between them and draws Path of Travel.
Room Report

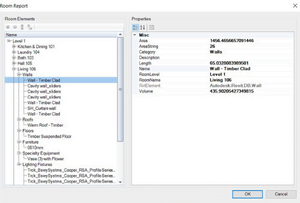

The Room Report tool analyzes 3D model or Active View and displays elements grouped by room. The result includes families (e.g. doors, windows, furniture, …), floors, ceilings and walls.
Modify Tool
Multi Join
This tool automates Revit’s Join Geometry tool by allowing the user to join selected categories.
Room to Floor
This tool allows the user to automatically generate a floor of a selected type within the selected Room.
Assembly
Create Assemblies tool updates the coordinate system of the assembly according to the instance main direction (e.g. X axis of a wall).
Annotate Tool
Legend by Category
This tool Will generate graphical schedules for various elements in just a few steps. Users can create a legend for windows, doors, furniture, walls, roofs, and elements of installation.
Renumber by Room
Renumber by Room tool automatically renumber mark parameters for instances (Door, Window, Furniture…) according to chosen settings in the model; from or to Room.
Bubbles
Tool Bubbles displays a dialog, where user can define a visibility (On/Off) of the symbol for selected element. Works on Levels, Grids and Section tags.
View Tool
Sheet
Tools enable users to duplicate active sheets with or without specified viewport, can align viewport on the sheet, can edit the sheet names, numbers, views, and also group or filter these parameters as needed to enable a better overview of data on the sheets.
Resize Section Box
This tool allows the user to resize a section box via user input in a dialog box. The user can resize the box in all directions to get a better look at the details. We’ve added a new option to resize the section box to the chosen Room or Level.
Toggle

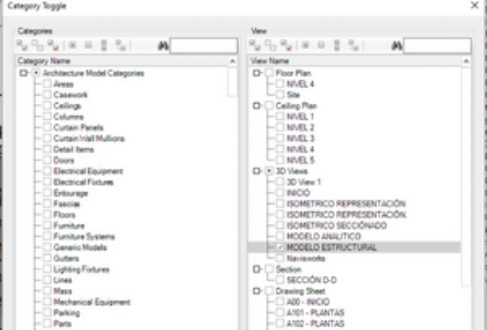

The Category Toggle tool enables the user to switch ON / OFF any category in a project (Architecture, Mechanical, Annotation…). A dialogue box offers the ability to select the category and then choose to display or hide it in various views.
Selection Tools
Content Admin Kit Tool
Filter & Modeless Filter
This tool displays a tree of elements in a project, grouped according to the user’s selection (e.g. by Category, by Level, by Workset). It gives the user control over selecting specific elements and filters elements from the selection, whole model, or active view. When selecting Instances based on Properties, the properties are now grouped by Instance and Type.
Content Admin Kit
This set of tools offers advanced management of parameters in families and projects. It helps manage the table’s shared parameters, converting instance parameters to type, and vice versa. Users can automatically import and create multiple parameters from one family to another and simplify content creation.
MicroCAD Autodesk Tools is a set of essential productivity plug-ins that will make your work in Revit fast, easy and efficient.
- Streamline your everyday tasks
- Reduce the amount of tedious work
- Become more productive
- Do things that are not possible with out-of-the-box Revit
